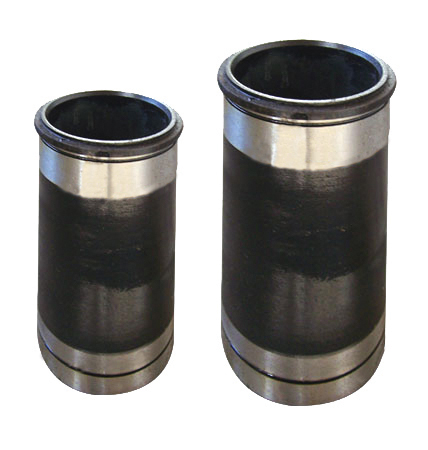

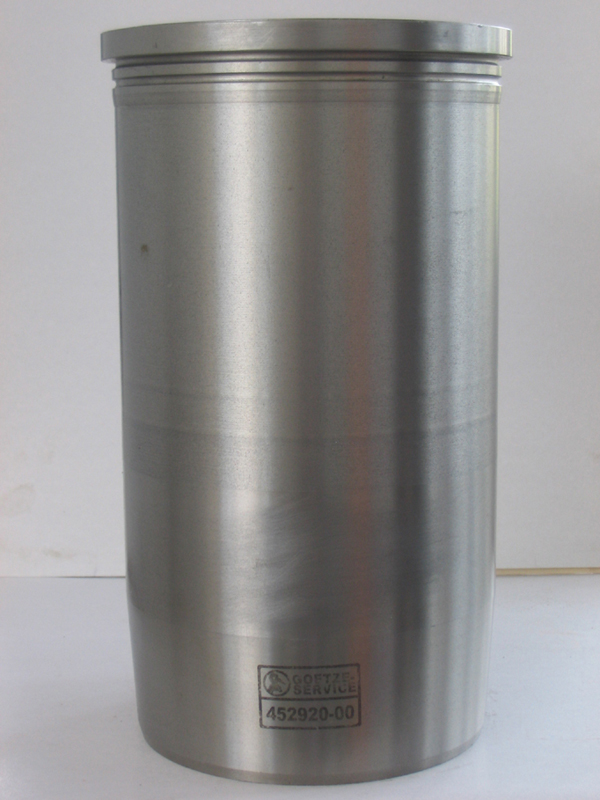

大功率發動機陶瓷涂層缸套
內燃機是一個通用性、配套性的產品,與汽車、農業機械、工程機械、船舶、內燃機車、發電設備、石油鉆機,還有其他通用機械,包括軍用產品都有配套關系,并且都是這些整機上最為關鍵的部件之一。缸套是內燃機中工作環境最為惡劣的零部件之一,工作環境十分惡劣,承受高溫、高壓的沖擊和活塞環的往復摩擦,磨損較快且產生拉缸現象。我公司大功率發動機陶瓷涂層缸套適用于石油行業、軍用產品坦克等。
陶瓷涂層泥漿泵缸套,用于石油行業,結合強度58MPa,硬度HV1100-1300,厚度為0.3-0.5mm,耐磨耐腐。
Ceramic coated cylinder for high power engine: the internal combustion engine is a common supporting products, with automobiles, agricultural machinery, engineering machinery, ships, diesel locomotives, power generation equipment, drilling rigs and other
general machinery, including military products have a relationship, and they are one of the most critical parts on machines. Liner is one of the worst parts of the internal combustion engine in the working environment, the working environment is very harsh, with stand high temperature, high pressure shock and the reciprocating piston ring friction, wear faster and it may appear Scuffing phenomenon. Our high-power ceramic coated cylinder engine used in the oil industry, tanks and other military products. Ceramic coated mud pump cylinder, used in the oil industry, combined with strength 58MPa, HV1100-1300 hardness, thickness 0.3-0.5mm, wear and corrosion resistance.
名稱Name | 使用壽命Using Life | 合格率Qualified Rate | |
泥 漿 泵 缸 套 Mud Pump Liner | 陶瓷缸套 Ceramic cylinder liner | 4000h | 79.2% |
金屬缸套 Ceramic cylinder liner | 300-500h | 100% | |
雙金屬缸套 Metal cylinder | 600-800h | 100% | |
★ 陶瓷合金涂層缸套 ★ceramic alloy coating Liner | 3600h | 100% | |
★陶瓷合金缸套 ★Ceramic alloy cylinder liner | 4000-6000h | 100% | |
★ 大功率發動機陶瓷涂層缸套 ★Ceramic coated cylinder for high power engine | 是原缸套的3-10倍 3-10 times than original cylinder liner | 100% | |
帶★號是我公司生產 we produce the products marked with ★ |

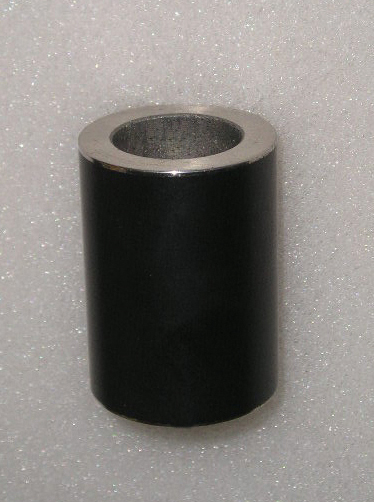

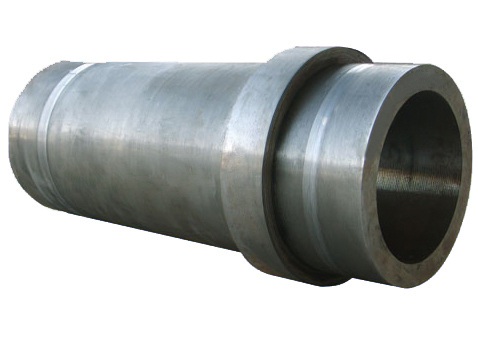

陶瓷涂層泥漿泵缸套

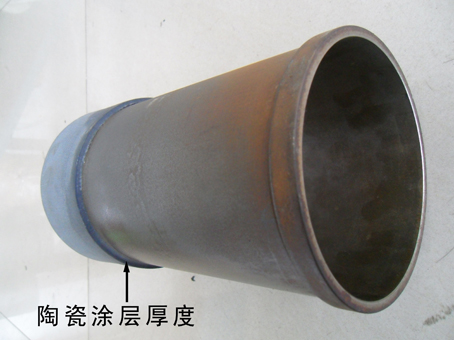

陶瓷涂層缸套 耐磨是原基材10倍
Ceramic coating cylinder liner wear-resistance is 10 times than

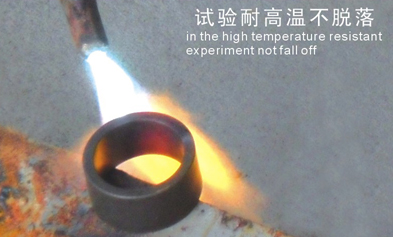

抗沖擊、耐磨、耐腐、耐高溫1200度,
表面硬度HV850-1300,結合強度80MPa
Shock resistance、Wear-resistant、Anti-corrosive、Thermostable 1200 degrees,
Surface hardness HV850-1300,Bonding strength of 80MPa
